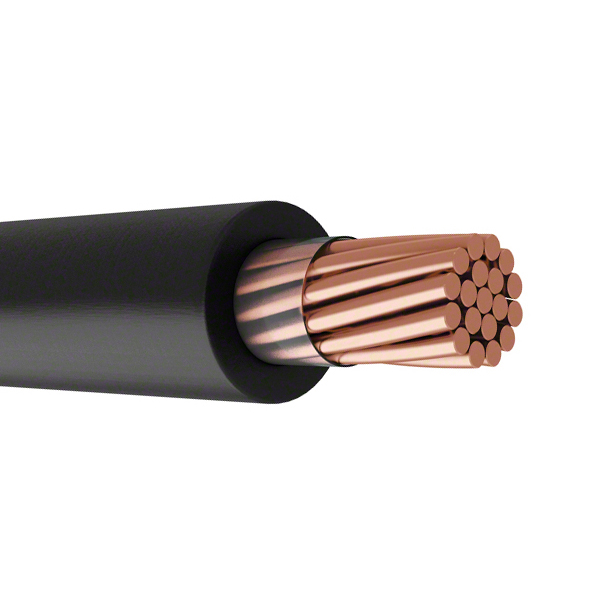

TTU Electrical Industrial Cable
Copper Conductor Electrical Cable For Industry used
Application
The copper conductors type TTU cable are used for power and lighting circuits in industrial and commercial facilities, they are specially suitable for outdoor installations or directly buried, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places, its maximum temperature of operation is 90 ºC and its voltage of service for all the applications it is 600 V or 2000V.
Share This Page
Standards
ASTM-B3， ICEA S-95-658/NEMA WC70.

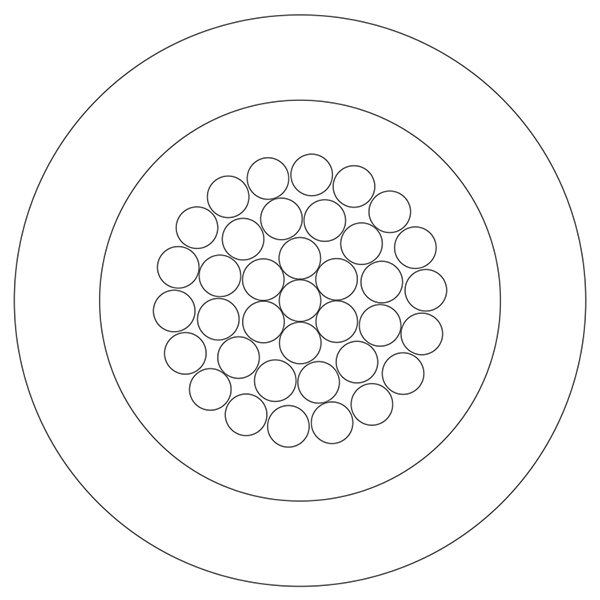

Construction
Conductor: Plain annealed solid or stranded copper wire.
Insulation: Crosslinked polyethylene（XLPE）.
Sheath: PVC
Characteristics
- Rated voltages： 600V, 2000V.
- Maximum conductor temperature：90℃ dry or wet .
- Colors: Insulation: Natural , Sheath : Black , color can be changed as order.
- Permissible minimum bending radius: 15 x OD
Note : OD=Overall Diameter of Cable
Specifications
Product parameters fro 600V TTU Cable
| Size AWG or MCM |
Conductor construction | Nominal Overall Diameter mm |
Approx. Overall Diameter mm |
Approx. Weight of Cable kg/km |
|
| No. of Strands | Dia of wires mm |
||||
| 14 | solid | 1.63 | 1.63 | 4.1 | 31 |
| 12 | solid | 2.05 | 2.05 | 4.5 | 45 |
| 10 | solid | 2.59 | 2.59 | 5.1 | 62 |
| 8 | solid | 3.26 | 3.26 | 6.6 | 101 |
| 14 | 7 | 0.62 | 1.86 | 4.3 | 33 |
| 12 | 7 | 0.78 | 2.34 | 4.9 | 46 |
| 10 | 7 | 0.98 | 2.94 | 5.5 | 67 |
| 8 | 7 | 1.23 | 3.69 | 7 | 106 |
| 6 | 7 | 1.56 | 4.68 | 8.6 | 168 |
| 4 | 7 | 1.96 | 5.88 | 9.9 | 250 |
| 2 | 7 | 2.47 | 7.4 | 11.4 | 376 |
| 1/0 | 19 | 1.89 | 9.2 | 10.4 | 598 |
| 2/0 | 19 | 2.13 | 10.4 | 15.6 | 741 |
| 3/0 | 19 | 2.39 | 11.6 | 16.8 | 912 |
| 4/0 | 19 | 2.68 | 13 | 18.3 | 1126 |
| 250 | 37 | 2.09 | 14.2 | 21 | 1372 |
| 300 | 37 | 2.29 | 15.5 | 22.3 | 1620 |
| 350 | 37 | 2.47 | 16.8 | 23.6 | 1864 |
| 400 | 37 | 2.64 | 18 | 24.7 | 2107 |
| 500 | 37 | 2.95 | 20 | 27.8 | 2594 |
| 600 | 61 | 2.52 | 22 | 29.5 | 3113 |
| 750 | 61 | 2.82 | 24.6 | 32.2 | 3846 |
| 1000 | 61 | 3.25 | 28.4 | 35.9 | 5035 |
Product parameters fro 2000V TTU Cable
| Size AWG or MCM |
Conductor construction | Nominal Overall Diameter mm |
Approx. Overall Diameter mm |
Approx. Weight of Cable kg/km |
|
| No. of Strands | Dia of wires mm |
||||
| 8 | 7 | 1.23 | 3.69 | 7.3 | 105 |
| 6 | 7 | 1.56 | 4.68 | 9 | 177 |
| 4 | 7 | 1.96 | 5.88 | 10.2 | 258 |
| 2 | 7 | 2.47 | 7.4 | 11.7 | 383 |
| 1/0 | 19 | 1.89 | 9.2 | 14.8 | 614 |
| 2/0 | 19 | 2.13 | 10.4 | 16 | 751 |
| 3/0 | 19 | 2.39 | 11.6 | 17.2 | 924 |
| 4/0 | 19 | 2.68 | 13 | 18.6 | 1143 |
| 250 | 37 | 2.09 | 14.2 | 21.3 | 1400 |
| 300 | 37 | 2.29 | 15.5 | 22.6 | 1652 |
| 350 | 37 | 2.47 | 16.8 | 23.9 | 1902 |
| 400 | 37 | 2.64 | 18 | 25.1 | 2126 |
| 500 | 37 | 2.95 | 20 | 27.1 | 2639 |
| 600 | 61 | 2.52 | 22 | 29.9 | 3115 |
| 750 | 61 | 2.82 | 24.6 | 32.5 | 3878 |
| 1000 | 61 | 3.25 | 28.4 | 36.3 | 5086 |
