Low votlage XLPE Insulated unarmored Cable

0.6/1kV XLPE Insulated Cable

Copper or Aluminum Low voltage xlpe power cable

Application

XLPE(Cross linked polyethylene) cable constitutes the best cable for transmission and distribution lines because of its excellent electrical and physical properties. These cables has the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.

Share This Page

Aerial Cable /Service Drop Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation/ Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

GB/12706.1, IEC60502-1, BS 6724, BS 7870-5，BS 5467, NFC 32-321, HD 603 S1 , AS/NZS 5000.1，AS/NZS 3599.1，AS/NZS 3599.2，IS 1554 , IS 7098 and ICEA S-66-524 etc.

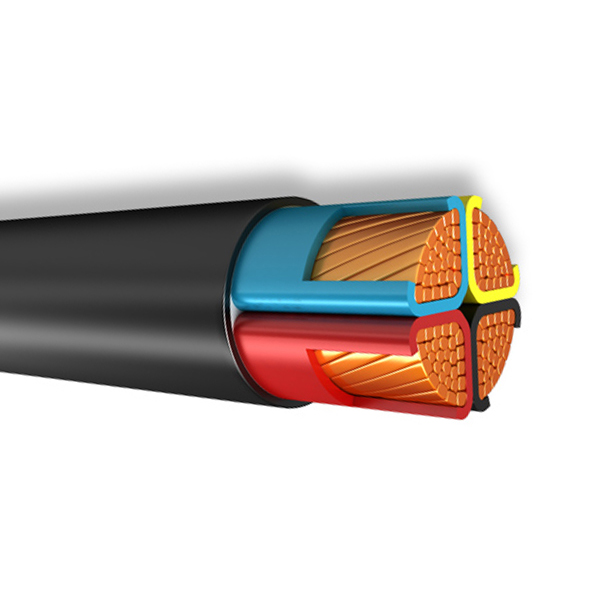

Construction

Conductor: Circular, solid, compacted or sector shaped stranded Copper or aluminum

Insulation: XLPE

Filler: non-hygroscopic material

Binder tape: non-hygroscopic material

Sheath: PVC

Characteristics

The product is suitable for power transmission and distribution lines with rated power frequency voltage 0.6/1 kV.

Rated voltages U0/U(Um): 0.6/1 (1.2)kV.
Note：
U0: Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U: Rated power-frequency voltage between phase conductors for which the cable is suitable.
Um: Maximum value of the highest system voltage between phase conductors for which the cable is suitable.
Test Voltage: 3.5kV 5min No Breakdown, according to IEC60502-1.
The ambient temperature for installation: ≥0℃.
Maximum conductor temperature in normal operation:≤90℃.
Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
Permissible minimum bending radius:
Single unarmoured cable: 20 x OD
Multi-core unarmoured cable: 15 x OD
Single armoured cable: 5 x OD
Multi-core armoured cable: 12 x OD
Note : OD=Overall Diameter of Cable

Specifications

Product type

General type	VDE type	Description	Application
CU/XLPE/PVC (AL/ XLPE /PVC)	N2XY(NA2XY)	Cu conductor（Al conductor）XLPE insulated PVC sheathed power cable	Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces.
CU/PVC/PE (AL/ XLPE /PE)	N2X2Y(NA2X2Y)	Cu conductor（Al conductor）XLPE insulated PE sheathed power cable
CU/ XLPE /STA/PVC (AL/XLPE/STA/PVC)	N2XBY(NA2XBY)	Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.
CU/XLPE/STA/PE (AL/XLPE/STA/PE)	N2XB2Y(NA2XB2Y)	Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PE sheathed power cable
CU/XLPE/ATA/PVC (AL/XLPE/ATA/PVC)	N2XBY(NA2XBY)	Cu conductor（Al conductor）XLPE insulated double of aluminum-tape armored PVC sheathed power cable
CU/XLPE/ATA/PE (AL/XLPE/ATA/PE)	N2XB2Y(NA2XB2Y)	Cu conductor（Al conductor）XLPE insulated double of aluminum-tape armored PE sheathed power cable
CU/XLPE/SWA/PVC (AL/XLPE/SWA/PVC)	N2XRY(NA2XRY)	Cu conductor（Al conductor）XLPE insulated steel-wire armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force
CU/XLPE/SWA/PE (AL/PVC/SWA/PE)	N2XR2Y(NA2XR2Y)	Cu conductor（Al conductor）XLPE insulated steel-wire armored PE sheathed power cable
CU/XLPE/AWA/PVC (AL/XLPE/AWA/PVC)	N2XRY(NA2XRY)	Cu conductor（Al conductor）XLPE insulated aluminum-wire armored PVC sheathed power cable
CU/XLPE/AWA/PE (AL/XLPE/AWA/PE)	N2XR2Y(NA2XR2Y)	Cu conductor（Al conductor）XLPE insulated aluminum-wire armored PE sheathed power cable

Product parameters

Specification mm2	Outer diameter of conductor mm	Nominal sheath thickness mm	Approx. outer diameter of cable mm	Approx. weight of cable kg/km
Specification mm2	Outer diameter of conductor mm	Nominal sheath thickness mm	Approx. outer diameter of cable mm	CU	AL
1×2.5 RE	1.78	1.4	6	57.5	42.1
1×4 RE	2.24	1.4	6.5	73.7	49
1×6 RE	2.76	1.4	7	95.8	58.7
1×10 CC	3.8	1.4	8	140.1	78.2
1×16 CC	4.8	1.4	9	201.8	102.8
1×25 CC	6	1.4	10.6	298.9	144.2
1×35 CC	7	1.4	11.6	396.7	180.2
1×50 CC	8.4	1.4	13.1	543.9	234.6
1×70 CC	10	1.4	15	744.7	311.6
1×95 CC	11.5	1.5	16.6	985.6	397.8
1×120 CC	13	1.5	18.4	1233	490.6
1×150 CC	14.5	1.6	20.5	1533.8	605.8
1×185 CC	16.2	1.6	22.7	1884.9	740.3
1×240 CC	18.4	1.7	25.3	2418	933.1
1×300 CC	20.5	1.8	27.7	2996.5	1140.4
1×400 CC	23.5	1.9	31.4	3962.3	1487.5
1×500 CC	26.5	2	35	4933	1839.5
1×630 CC	30	2.2	39.1	6188.8	2291
2×1.5 RE	1.38	1.8	9.8	106.7	88
2×2.5 RE	1.78	1.8	10.6	133	101.9
2×4 RE	2.24	1.8	11.5	174.8	125.1
2×6 RE	2.76	1.8	12.5	226.4	151.8
2×10 CC	3.8	1.8	14.6	348.1	223.7
2×16 CC	4.8	1.8	16.6	476.5	277.5
2×25 CC	6	1.8	19.8	678.4	367.5
2×35 CC	7	1.8	21.8	879.5	444.2
2×50 SM	8	1.8	19.2	1103	481.2
2×70 SM	9.5	1.8	21.9	1501.9	631.4
2×95 SM	11	2	24.7	1993.9	812.4
2×120 SM	12.4	2.1	27.3	2493.9	1001.6
2×150 SM	13.8	2.2	30.6	3106.1	1240.7
2×185 SM	15.4	2.3	33.8	3816.7	1516.1
2×240 SM	17.5	2.5	37.6	4899.7	1915.1
2×300 SM	19.6	2.7	41.7	6079.6	2348.9
3×1.5 RE	1.38	1.8	10.2	132	104
3×2.5 RE	1.78	1.8	11.1	168.7	122
3×4 RE	2.24	1.8	12.1	220.4	145.8
3×6 RE	2.76	1.8	13.2	296.6	184.7
3×10 CC	3.8	1.8	15.4	439.4	252.9
3×16 CC	4.8	1.8	17.6	645.9	347.4
3×25 CC	6	1.8	21	937.2	470.9
3×35 CC	7	1.8	23.2	1231.6	578.7
3×50 SM	8	1.8	22.1	1611.4	678.8
3×70 SM	9.5	1.9	25.7	2213.1	907.4
3×95 SM	11	2	28.7	2938.7	1166.6
3×120 SM	12.4	2.1	32.5	3687	1448.5
3×150 SM	13.8	2.3	36.8	4598.4	1800.4
3×185 SM	15.4	2.4	40.9	5654.8	2203.8
3×240 SM	17.5	2.6	45.7	7268	2791.1
3×300 SM	19.6	2.8	50.5	9019.7	3423.5
4×1.5 RE	1.38	1.8	10.9	157.8	120.5
4×2.5 RE	1.78	1.8	11.9	205.1	142.9
4×4 RE	2.24	1.8	13	272.3	172.8
4×6 RE	2.76	1.8	14.2	371	221.8
4×10 CC	3.8	1.8	16.8	543.9	295.2
4×16 CC	4.8	1.8	19.2	787.2	389.2
4×25 CC	6	1.8	23	1188.9	567.1
4×35 CC	7	1.8	25.4	1577.4	706.9
4×50 SM	8	1.9	26.1	2134.8	891.2
4×70 SM	9.5	2	30.1	2931.8	1190.8
4×95 SM	11	2.1	33.5	3895.1	1532.3
4×120 SM	12.4	2.3	36.6	4874.6	1890
4×150 SM	13.8	2.4	40.9	6078.8	2348.1
4×185 SM	15.4	2.6	46.5	7492.1	2890.8
4×240 SM	17.5	2.8	51.1	9619.9	3650.7
4×300 SM	19.6	3	56.3	11943.2	4481.7
3×4+1×2.5 RE	2.24/1.78	1.8	12.7	255.5	165.3
3×6+1×4 RE	2.76/2.24	1.8	13.9	349.4	212.6
3×10+1×6 CC	3.8/2.76	1.8	16.1	505.2	281.4
3×16+1×10 CC	4.8/3.8	1.8	18.6	730.9	370.2
3×25+1×16 CC	6.0/4.8	1.8	22.1	1093.4	527.5
3×35+1×16 CC	7.0/4.8	1.8	23.9	1384.8	632.4
3×50+1×25 SM	8.0/6.0	1.8	24.9	1901.4	813.3
3×70+1×35 SM	9.5/7.0	1.9	28.7	2599.1	1075.7
3×95+1×50 SM	11.0/8.4	2.1	31.9	3470.6	1387.6
3×120+1×70 SM	12.4/10.0	2.2	34.9	4401.4	1727.7
3×150+1×70 SM	13.8/10.0	2.3	38.9	5309	2075.6
3×185+1×95 SM	15.4/11.5	2.5	44.2	6614.5	2572.9
3×240+1×120 SM	17.5/13.0	2.7	48.5	8456.4	3233.4
3×300+1×150 SM	19.6/14.5	2.9	53.4	10499	3970.2
5×1.5 RE	1.38	1.8	11.7	184.3	137.7
5×2.5 RE	1.78	1.8	12.8	242.3	164.6
5×4 RE	2.24	1.8	14.1	324.9	200.6
5×6 RE	2.76	1.8	15.4	446.3	259.8
5×10 CC	3.8	1.8	18.2	664.2	353.3
5×16 CC	4.8	1.8	20.9	965.5	468.1
5×25 CC	6	1.8	25.3	1456.5	679.2
5×35 CC	7	1.8	28	1939.4	851.3
5×50 CC	8.4	2	32.1	2649.3	1094.9
5×70 CC	10	2.1	37.1	3645.3	1469
5×95 CC	11.5	2.3	41.6	4846.2	1892.7
5×120 CC	13	2.4	46.4	6074.4	2343.6
5×150 CC	14.5	2.6	51.9	7589.3	2925.8
5×185 CC	16.2	2.8	56	9342.3	3590.7
5×240 CC	18.4	3	64.9	12016.7	4555.2
5×300 CC	20.5	3.2	71.5	14918	5591.1
4×4+1×2.5 RE	2.24/1.78	1.8	13.8	308.4	193.4
4×6+1×4 RE	2.76/2.24	1.8	15.2	425.1	251
4×10+1×6 CC	3.8/2.76	1.8	17.7	621.5	335.5
4×16+1×10 CC	4.8/3.8	1.8	20.4	905.3	445.1
4×25+1×16 CC	6.0/4.8	1.8	24.4	1361.8	640.5
4×35+1×16 CC	7.0/4.8	1.8	26.6	1748.1	778.1
4×50+1×25 SM	8.0/6.0	1.9	25.4	2374.9	975.8
4×70+1×35 SM	9.5/7.0	2.1	29.1	3261.8	1303.2
4×95+1×50 SM	11.0/8.1	2.2	32.7	4369.4	1695.7
4×120+1×70 SM	12.4/9.8	2.4	36.7	5548.3	2128.5
4×150+1×70 SM	13.8/9.8	2.5	40.4	6744.5	2578.5
4×185+1×95 SM	15.4/11.4	2.7	45	8376.5	3184.6
4×240+1×120 SM	17.5/12.9	2.9	50.5	10751.4	4036.1
4×300+1×150 SM	19.6/14.5	3.1	55.9	13365.7	4971.4
3×4+2×2.5 RE	2.24/1.78	1.8	13.5	291.9	186.2
3×6+2×4 RE	2.76/2.24	1.8	14.9	403.8	242.1
3×10+2×6 CC	3.8/2.76	1.8	17.1	578.9	317.7
3×16+2×10 CC	4.8/3.8	1.8	19.9	845	422.2
3×25+2×16 CC	6.0/4.8	1.8	23.5	1267.1	601.8
3×35+2×16 CC	7.0/4.8	1.8	25.2	1556.9	705
3×50+2×25 SM	8.0/6.0	1.9	25.3	2151.8	908.2
3×70+2×35 SM	9.5/7.0	2	29	2942.3	1201.3
3×95+2×50 SM	11.0/8.1	2.2	32.6	3960.2	1566.2
3×120+2×70 SM	12.4/9.8	2.3	36.6	5093.1	1984.1
3×150+2×70 SM	13.8/9.8	2.4	40.2	5996.7	2328.1
3×185+2×95 SM	15.4/11.4	2.6	44.8	7527.1	2894.7
3×240+2×120 SM	17.5/12.9	2.8	50.3	9621.2	3652
3×300+2×150 SM	19.6/14.5	3	55.7	11961.3	4499.7

Range of production

Number of cores: 1, 2, 3, 4, 5, 2+E, 3+E, 4+E;
Nominal cross-section （mm2）: 0.5 ~ 800;
