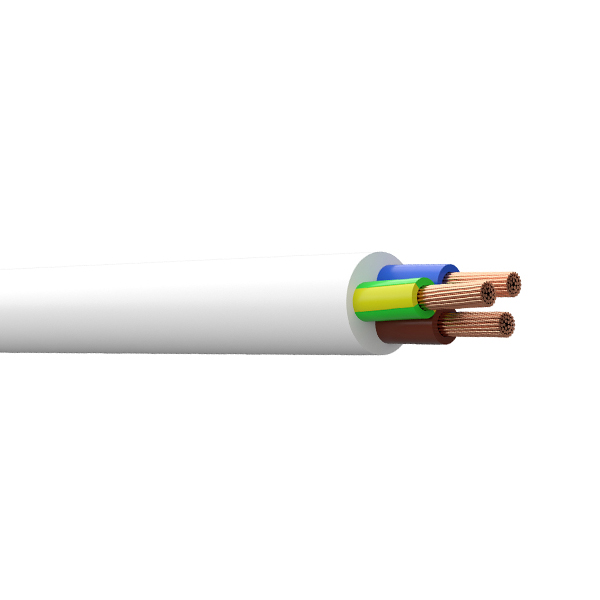

H07RN-F
450/750V Electrical cable EPR cable manufacturer
Application
These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audiovisual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.
Share This Page
Standards
Standards
IEC 60245, BS EN 50525-2-21, GB/T5013.4 etc.

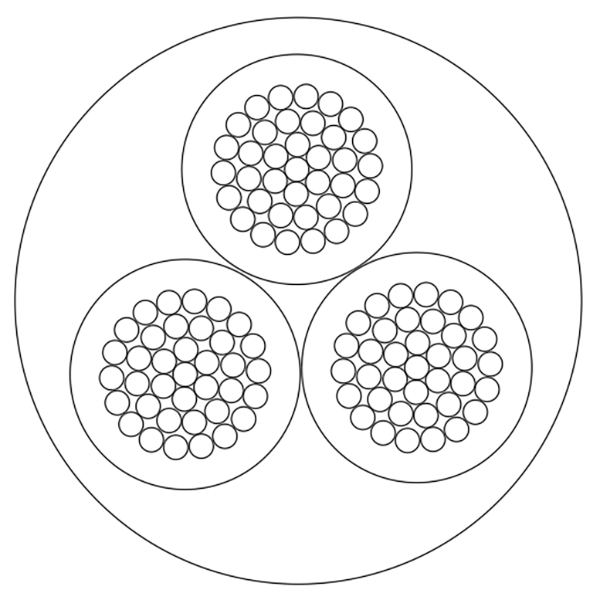

Construction
Conductor: Plain annealed flexible copper wire or tinned annealed flexible copper wire (Class 5)
Insulation: EPR (Ethylene Propylene Rubber) or other equivalent synthetic elastomer
Sheath: Polychloroprene compound (PCP) or other equivalent synthetic elastomer
Characteristics
- Voltage Rated U0/ U: and 450/750V.
Note:
U0: Rated power-frequency voltage between conductor and earth for which the cable is suitable.
U: Rated power-frequency voltage between phase conductors for which the cable is suitable. - Temperature Rating : Fixed : -30℃ to 60℃ ; Fixed protected installations : +85℃ .
- Minimum Bending Radius: Fixed: 4 x overall diameter;
- Flexed: 6 x overall diameter.
Specifications
| Core and size mm2 |
Stranding number of strand/strand diameter No./mm |
Thickness of insulation mm |
Thickness of sheath mm |
Nominal overall diameter mm |
Approx. weight kg/km |
| 1×1.5 | 30×0.25 | 0.8 | 1.4 | 6 | 49 |
| 1x 2.5 | 50×0.25 | 0.9 | 1.4 | 6.6 | 63 |
| 1×4 | 56×0.30 | 1 | 1.5 | 7.6 | 92 |
| 1×6 | 84×0.30 | 1 | 1.6 | 8.3 | 115 |
| 1×10 | 80×0.40 | 1.2 | 1.8 | 10.7 | 189 |
| 1×16 | 126×0.40 | 1.2 | 1.9 | 12 | 260 |
| 1×25 | 196×0.40 | 1.4 | 2 | 14.1 | 369 |
| 1×35 | 276×0.40 | 1.4 | 2.2 | 15.8 | 500 |
| 1×50 | 396×0.40 | 1.6 | 2.4 | 18.3 | 689 |
| 1×70 | 360×0.50 | 1.6 | 2.6 | 20.7 | 918 |
| 1×95 | 475×0.50 | 1.8 | 2.8 | 23.4 | 1202 |
| 1×120 | 608×0.50 | 1.8 | 3 | 25.6 | 1489 |
| 1×150 | 756×0.50 | 2 | 3.2 | 28.3 | 1824 |
| 1×185 | 925×0.50 | 2.2 | 3.4 | 31 | 2202 |
| 1×240 | 1221×0.50 | 2.4 | 3.5 | 34.5 | 2847 |
| 1×300 | 1525×0.50 | 2.6 | 3.6 | 37.7 | 3495 |
| 1×400 | 2013×0.50 | 2.8 | 3.8 | 40.4 | 4293 |
| 1×500 | 1769×0.60 | 3 | 4 | 42.6 | 5262 |
| 1×630 | 2257×0.60 | 3 | 4.1 | 47.2 | 6790 |
| 2 X 1.0 | 32/0.20 | 0.8 | 1.3 | 8.4 | 98 |
| 2 X 1.5 | 30/0.50 | 0.8 | 1.5 | 9.4 | 116 |
| 2 X 2.5 | 50/0.25 | 0.9 | 1.7 | 11 | 164 |
| 2 X 4 | 56/0.30 | 1 | 1.8 | 12.8 | 232 |
| 2 X 6 | 84/0.30 | 1 | 2 | 14.2 | 297 |
| 2 X 10 | 80/0.40 | 1.2 | 3.1 | 20.4 | 573 |
| 2 X 16 | 126/0.40 | 1.2 | 3.3 | 23 | 774 |
| 2 X 25 | 196/0.40 | 1.4 | 3.6 | 27.4 | 1110 |
| 2 X 35 | 276/0.40 | 1.4 | 3.8 | 30.8 | 1474 |
| 3 X 1.0 | 32/0.20 | 0.8 | 1.4 | 9 | 108 |
| 3 X 1.5 | 30/0.50 | 0.8 | 1.6 | 10.3 | 141 |
| 3 X 2.5 | 50/0.25 | 0.9 | 1.8 | 11.8 | 200 |
| 3 X 4 | 56/0.30 | 1 | 1.9 | 13.7 | 285 |
| 3 X 6 | 84/0.30 | 1 | 2.1 | 15.2 | 371 |
| 3 X 10 | 80/0.40 | 1.2 | 3.3 | 21.9 | 712 |
| 3 X 16 | 126/0.40 | 1.2 | 3.5 | 24.7 | 971 |
| 3 X 25 | 196/0.40 | 1.4 | 3.8 | 29.4 | 1394 |
| 4 X 1.0 | 32/0.20 | 0.8 | 1.5 | 10 | 134 |
| 4 X 1.5 | 30/0.25 | 0.8 | 1.7 | 11.2 | 174 |
| 4 X 2.5 | 50/0.25 | 0.9 | 1.9 | 12.6 | 249 |
| 4 X 4 | 56/0.30 | 1 | 2 | 15.1 | 361 |
| 4 X 6 | 84/0.30 | 1 | 2.3 | 16.9 | 480 |
| 4 X 10 | 80/0.40 | 1.2 | 3.4 | 24 | 890 |
| 4 X 16 | 126/0.40 | 1.2 | 3.6 | 27 | 1225 |
| 4 X 25 | 196/0.40 | 1.4 | 4.1 | 32.6 | 1792 |
| 4 X 35 | 276/0.4 | 1.4 | 4.4 | 36.5 | 2380 |
| 4 X 50 | 396/0.4 | 1.6 | 4.8 | 42 | 3635 |
| 4 X 70 | 360/0.5 | 1.6 | 5.2 | 49 | 4830 |
| 4 X 95 | 475/0.5 | 1.8 | 5.9 | 55 | 6320 |
| 5 X 1.0 | 32/0.20 | 0.8 | 1.6 | 11 | 170 |
| 5 X 1.5 | 30/0.50 | 0.8 | 1.8 | 12.3 | 218 |
| 5 X 2.5 | 50/0.25 | 0.9 | 2 | 14.5 | 309 |
| 5 X 4 | 56/0.30 | 1 | 2.2 | 16.9 | 450 |
| 5 X 6 | 84/0.30 | 1 | 2.5 | 18.8 | 595 |
| 5 X 10 | 80/0.40 | 1.2 | 3.6 | 26.5 | 1100 |
| 5 X 16 | 126/0.40 | 1.2 | 3.9 | 30 | 1528 |
| 5 X 25 | 196/0.40 | 1.4 | 4.4 | 36 | 2200 |
| 5 X 35 | 276/0.40 | 1.4 | 4.6 | 40 | 2925 |
