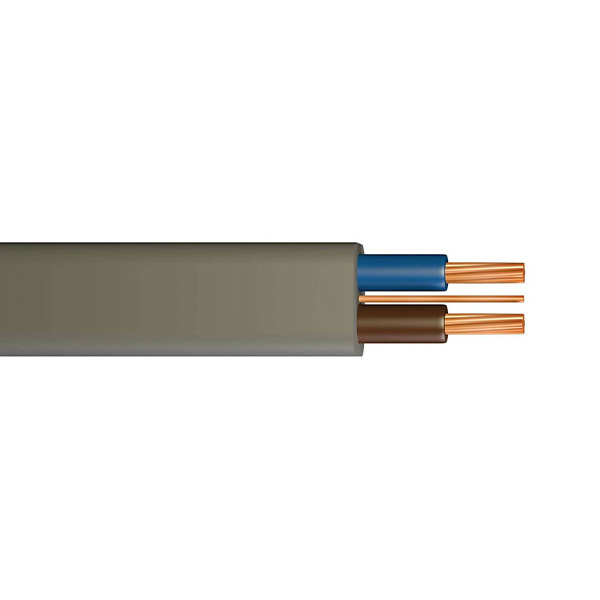

Twin and Earth Cable
Australia Standard SAA Twin and Earth Cable PVC Insulated Cable
Application
Domestic wiring cable. Can be installed in fixed installations in dry or damp premises clipped to surface, on trays or in free air where the risk of mechanical damage would not be an issue. Suitable for laying in conduit or trunking where mechanical protection is required.
Share This Page
Standards
BS 6004.

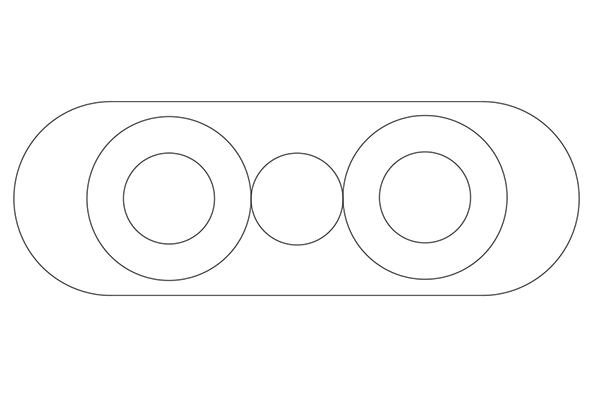

Construction
Conductor:
up to 4mm2 – Class 1 Solid annealed copper conductor
from 4mm2 – Class 2 stranded plain annealed circular copper conductor conform to EN 60228.
Insulation: PVC type TI 1.
Sheath: PVC type 6.
Circuit protective conductor (CPC):
up to 4mm2 – Class 1 Solid Annealed Copper Conductor
from 4mm2 – Class 2 Stranded Plain Annealed Circular Copper Conductor
Characteristics
- Rated voltages U0/U: 300/500V.
Note:
U0: Rated power-frequency voltage between conductor and earth for which the cable is suitable.
U: Rated power-frequency voltage between phase conductors for which the cable is suitable. - The ambient temperature for installation: ≥0℃
- Maximum conductor temperature in normal operation:≤70℃
- Short circuit temperature : +160℃.
- Voltage test: 2000 V ac for 5 min, No breakdown.
- Minimum Bending Radius: Fixed: 6 x OD (overall diameter).
- Flame Retardant according to IEC/EN 60332-1-2.
Specifications
| Number ×phase conductors Size mm2 |
Number of wires in the phase conductor No. |
Nominal insulation thickness mm |
Circuit protective conductor size mm2 |
Number of wires in the circuit protective conductor No. |
Nominal overall diameter | Nominal weight kg/km |
|
| Min mm |
Max mm |
||||||
| 6241-Y | |||||||
| 1×1.0 | 1 | 0.6 | 1 | 1 | 3.9×5.0 | 4.8×6.0 | 40 |
| 1×1.5 | 1 | 0.7 | 1 | 1 | 4.4×5.4 | 5.3×6.6 | 46 |
| 6242-Y | |||||||
| 2×1.0 | 1 | 0.6 | 1 | 1 | 3.9×7.2 | 4.8×8.7 | 68 |
| 2×1.5 | 1 | 0.7 | 1 | 1 | 4.4×8.1 | 5.3×9.1 | 87 |
| 2×2.5 | 1 | 0.8 | 1.5 | 1 | 5.1×9.6 | 6.2×11.7 | 120 |
| 2×4 | 7 | 0.8 | 1.5 | 1 | 5.7×10.8 | 6.9×13.1 | 172 |
| 2×6 | 7 | 0.8 | 2.5 | 1 | 6.4×12.4 | 7.8×15.0 | 235 |
| 2×10 | 7 | 1 | 4 | 7 | 7.9×15.6 | 9.5×18.9 | 373 |
| 2×16 | 7 | 1 | 6 | 7 | 8.9×18.1 | 10.8×21.9 | 530 |
| 6243-Y | |||||||
| 3×1.0 | 1 | 0.6 | 1 | 1 | 3.9×9.4 | 4.8×11.4 | 91 |
| 3×1.5 | 1 | 0.7 | 1 | 1 | 4.4×10.7 | 5.3×12.9 | 115 |
| 3×2.5 | 1 | 0.8 | 1.5 | 1 | 5.1×12.6 | 6.2×15.3 | 168 |
| 3×4 | 7 | 0.8 | 1.5 | 1 | 5.7×14.8 | 6.9×17.9 | 246 |
| 3×6 | 7 | 0.8 | 2.5 | 1 | 6.4×16.8 | 7.8×20.2 | 325 |
| 3×10 | 7 | 1 | 4 | 7 | 7.9×21.3 | 9.5×25.7 | 512 |
| 3×16 | 7 | 1 | 6 | 7 | 8.9×24.6 | 10.8×29.7 | 745 |
