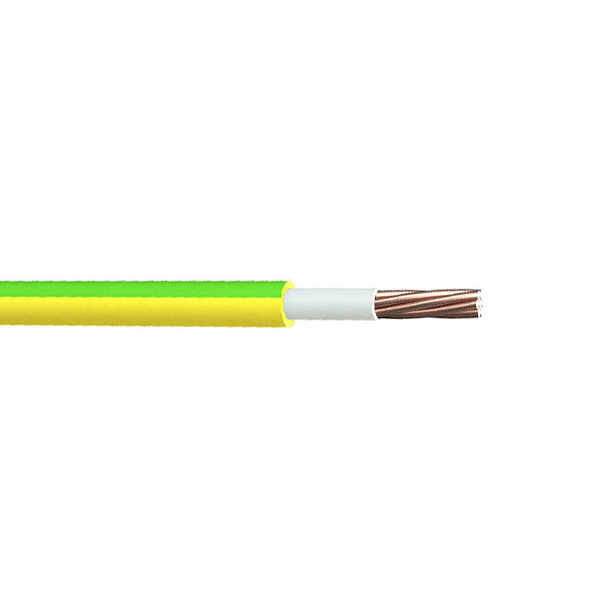

SAA Single Core Cable

Australia Standard SAA Single Core PVC Insulated Cable

Application

These cables are used for switchboard and control panel wiring, and for fixed wiring within other enclosures or apparatus where the cable is not accessible without the use of tools.

Share This Page

ABC Cable / Aerial Bundled Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation / Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

AS/NZS 5000.2, AS/NZS 1125, AS/NZS 3808.

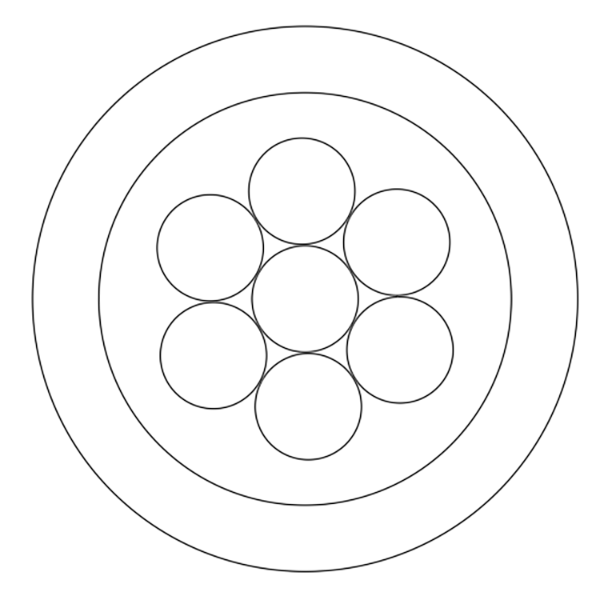

Construction

Conductor: Plain circular, solid, or stranded copper conductor ,conform to AS/NZS 1125.

Insulation: PVC V-90. Color : Red/Black.

Sheath: PVC 3V-90. Color : White.

Characteristics

Rated voltages U0/U: 450/750V.
Note:
U0: Rated power-frequency voltage between conductor and earth for which the cable is suitable.
U: Rated power-frequency voltage between phase conductors for which the cable is suitable.
The ambient temperature for installation: ≥0℃
Maximum conductor temperature in normal operation:≤90℃

Specifications

Nominal cross section mm2	Conductor Size No./ OD	Nominal overall diameter mm	Nominal weight kg/km	Maximum conductor DC resistance 20℃ Ω/km	Maximum conductor AC resistance 90℃ Ω/km	Reactance Ω/km	Single phase voltage drop 90°C mV/Am
1	1/1.13	4.1	30	18.1	27	0.168	54
1.5	7/0.50	4.4	35	13.6	17.3	0.157	34.6
2.5	7/0.67	5.1	55	7.41	9.45	0.143	18.9
4	7/0.85	6	80	4.61	5.88	0.137	11.8
6	7/1.04	6.6	100	3.08	3.93	0.128	7.86
10	7/1.35	7.8	145	1.83	2.33	0.118	4.68
16	7/1.70	9.1	225	1.15	1.47	0.111	2.94
