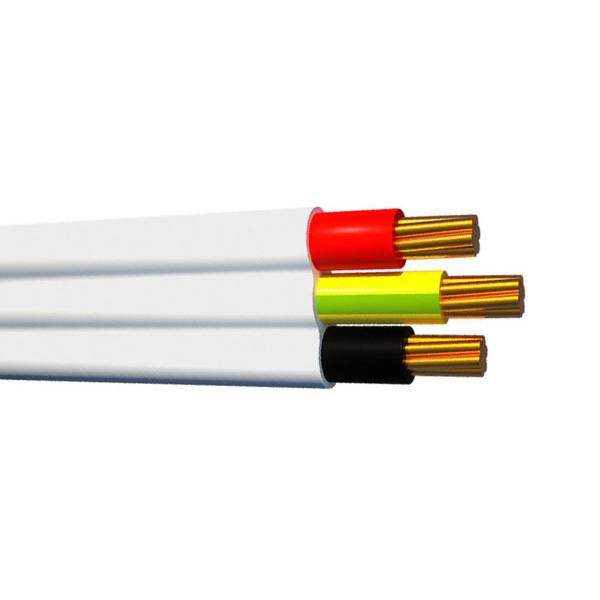

SAA Flat TPS Cable
Australia Standard SAA Single Core PVC Insulated Cable
Application
These cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage. Suitable for single phase applications requiring neutral and E.
Share This Page
Standards
AS/NZS 5000.2 , AS/NZS 1125 , AS/NZS 3808

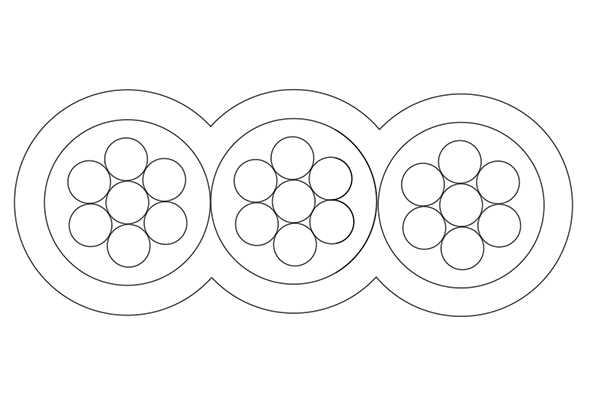

Construction
Phase and Neutral Conductor: Plain circular, solid, or stranded copper conductor, conform to AS/NZS 1125.
Insulation: PVC V-90. Color : Red, Black, Green/yellow.
Sheath: PVC 3V-90. Color : White.
Earth Conductor: Plain circular, solid, or stranded copper conductor, conform to AS/NZS 1125.
Characteristics
- Rated voltages U0/U: 450/750V.
Note:
U0: Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U: Rated power-frequency voltage between phase conductors for which the cable is suitable. - The ambient temperature for installation: ≥0℃
- Maximum conductor temperature in normal operation:≤90℃
Specifications
| Nominal cross section mm2 |
Conductor Size No./ OD |
Nominal overall diameter Min |
Nominal weight kg/km |
Maximum conductor DC resistance 20℃ Ω/km |
Maximum conductor AC resistance 90℃ Ω/km |
Reactance Ω/km |
Single phase voltage drop 90°C mV/Am |
|
| Min mm |
Max mm |
|||||||
| 1 | 1/1.13 | 8.8×4.1 | 9.3×4.4 | 75 | 18.1 | 27 | 0.119 | 54.1 |
| 1.5 | 7/0.50 | 10.0×4.5 | 10.7×4.8 | 95 | 13.6 | 17.3 | 0.111 | 34.7 |
| 2.5 | 7/0.67 | 12.1×5.4 | 12.7×5.7 | 145 | 7.41 | 9.45 | 0.102 | 19 |
| 4 | 7/0.85 | 13.7×6.3 | 14.4×6.6 | 220 | 4.61 | 5.88 | 0.1 | 11.8 |
| 6 | 7/1.04 | 14.9×6.9 | 15.6×7.3 | 290 | 3.08 | 3.93 | 0.0967 | 7.9 |
| 10 | 7/1.35 | 18.9×8.3 | 19.6×8.7 | 440 | 1.83 | 2.33 | 0.0906 | 4.7 |
| 16 | 7/1.70 | 21.0×9.5 | 22.0×10.0 | 645 | 1.15 | 1.47 | 0.0861 | 2.95 |
