Conducting The Energy - Xinfeng Cable

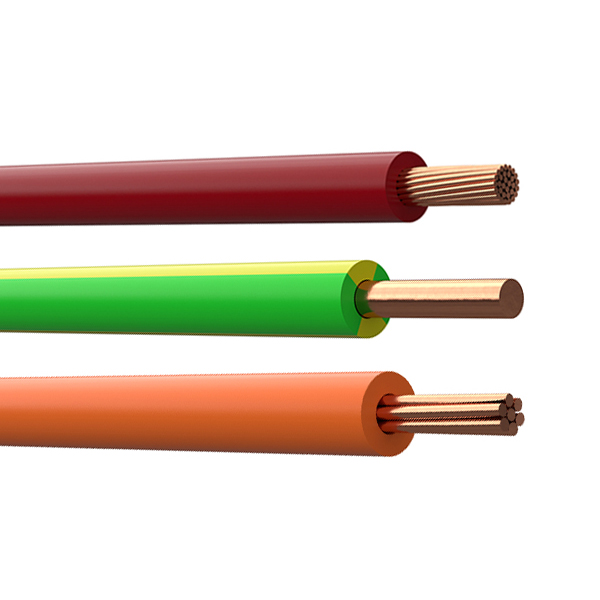

H07Z-U H07Z-R H07Z-K
300/500V Single Core Electrical Cable
Application
Single core, non-sheathed cables are suitable particularly for situations in which low emission of smoke and corrosive gases is required in the case of burning.H07Z-U, H07Z-R, H07Z-K-single core, non-sheathed cables are intended for installation in surface mounted or embedded conduits, or similar closed systems. Suitable for fixed protected installation in, or on, lighting and control gear for voltages up to 1000 V a.c. or, up to 750V d.c. to earth.
Share This Page
Standards
DIN VDE 0282-9, BS 7211, HD 22.9, EN 50363-5

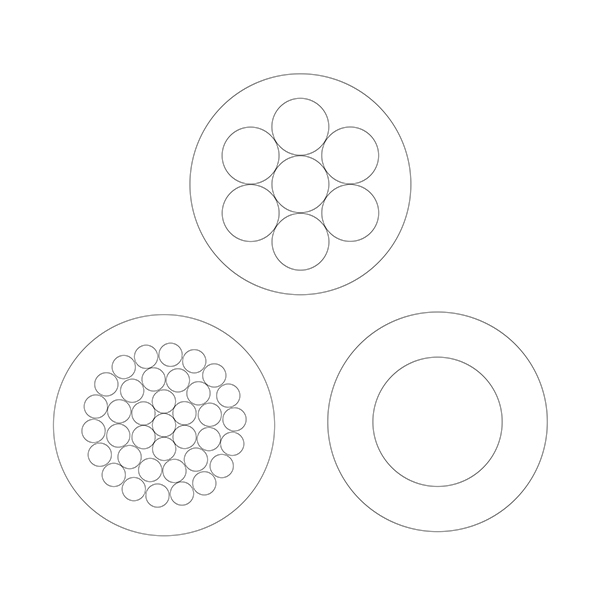

Construction
Conductor
Class 1 solid annealed copper conductor for H07Z-U;
Cass 2 stranded rigid annealed copper conductor for H07Z-R;
Class 5 stranded flexible annealed copper conductor for H07Z-K;
The conductors shall comply with the requirements given in IEC 60228.
Insulation
Special thermosetting low smoke zero halogen compound type EI5 acc. to EN 50363-5
Color of insulation: Green/yellow, blue, black, brown or as customer required
Characteristics
- Rated voltages U0/U: 300/500V.
Note：U0： Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U：Rated power-frequency voltage between phase conductors for which the cable is suitable. - Maximum conductor operating temperature: +90℃
- Maximum short circuit conductor temperature: +250℃
- Test voltage: 2500V
- Flame propagation: EN 60332-1-2 (IEC 60332-1) ;EN 60332-3-24 (IEC 60332-3-24)
Smoke emission: EN 61034-2 (IEC 61034-2)
Corrosive and acid gas emission of insulation: EN 50267-2-2 (IEC 60754-2): pH≥4,3; Conductivity: ≤ 10 μS/mm
Specifications
| Nom. cross-sectional area mm2 |
No. And dia. of strands No./mm |
Thickness of insulation mm |
Mean overall diameter | Max. DC resistance of conductor at 20℃ Ω/km |
Min. insulation resistance at 70℃ MΩ.km |
|
| Lower limit mm |
Upper limit mm |
|||||
| H07Z-U | ||||||
| 1.5 | 1/1.37 | 0.7 | 2.6 | 3.3 | 12.1 | 0.011 |
| 2.5 | 1/1.78 | 0.8 | 3.2 | 4 | 7.41 | 0.01 |
| 4 | 1/2.24 | 0.8 | 3.6 | 4.6 | 4.61 | 0.0085 |
| 6 | 1/2.73 | 0.8 | 4.1 | 5.2 | 3.08 | 0.007 |
| 10 | 1/3.57 | 1 | 5.3 | 6.6 | 1.83 | 0.007 |
| H07Z-R | ||||||
| 1.5 | 7/0.52 | 0.7 | 2.7 | 3.4 | 12.1 | 0.01 |
| 2.5 | 7/0.68 | 0.8 | 3.3 | 4.1 | 7.41 | 0.009 |
| 4 | 7/0.85 | 0.8 | 3.8 | 4.7 | 4.61 | 0.0077 |
| 6 | 7/1.04 | 0.8 | 4.3 | 5.4 | 3.08 | 0.0065 |
| 10 | 7/1.33 | 1 | 5.6 | 7 | 1.83 | 0.0065 |
| 16 | 7/1.70 | 1 | 6.4 | 8 | 1.15 | 0.005 |
| 25 | 7/2.12 | 1.2 | 8.1 | 10.1 | 0.727 | 0.005 |
| 35 | 7/2.50 | 1.2 | 9 | 11.3 | 0.524 | 0.0043 |
| 50 | 19/1.78 | 1.4 | 10.6 | 13.2 | 0.387 | 0.0043 |
| 70 | 18/2.12 | 1.4 | 12.1 | 15.1 | 0.268 | 0.0035 |
| 95 | 19/2.50 | 1.6 | 14.1 | 17.6 | 0.193 | 0.0035 |
| 120 | 37/2.00 | 1.6 | 15.6 | 19.4 | 0.153 | 0.0032 |
| 150 | 37/2.24 | 1.8 | 17.3 | 21.6 | 0.124 | 0.0032 |
| 185 | 37/2.50 | 2 | 19.3 | 24.1 | 0.0991 | 0.0032 |
| 240 | 61/2.24 | 2.2 | 22 | 27.5 | 0.0754 | 0.0032 |
| 300 | 62/2.50 | 2.4 | 24.5 | 30.6 | 0.0601 | 0.003 |
| 400 | 61/2.85 | 2.6 | 27.5 | 34.3 | 0.047 | 0.0028 |
| H07Z-K | ||||||
| 1.5 | 30/0.25 | 0.7 | 2.8 | 3.5 | 13.3 | 0.01 |
| 2.5 | 50/0.25 | 0.8 | 3.4 | 4.3 | 7.98 | 0.009 |
| 4 | 56/0.30 | 0.8 | 3.9 | 4.9 | 4.95 | 0.007 |
| 6 | 84/0.30 | 0.8 | 4.4 | 5.5 | 3.3 | 0.006 |
| 10 | 80/0.40 | 1 | 5.7 | 7.1 | 1.91 | 0.0056 |
| 16 | 128/0.40 | 1 | 6.7 | 8.4 | 1.21 | 0.0046 |
| 25 | 200/0.40 | 1.2 | 8.4 | 10.6 | 0.78 | 0.0044 |
| 35 | 280/0.40 | 1.2 | 9.7 | 12.1 | 0.554 | 0.0038 |
| 50 | 400/0.40 | 1.4 | 11.5 | 14.4 | 0.386 | 0.0037 |
| 70 | 356/0.50 | 1.4 | 13.2 | 15.6 | 0.272 | 0.0032 |
| 95 | 485/0.50 | 1.6 | 15.1 | 18.8 | 0.206 | 0.0032 |
| 120 | 614/0.50 | 1.6 | 16.7 | 20.9 | 0.161 | 0.0029 |
| 150 | 765/0.50 | 1.8 | 18.6 | 23.3 | 0.129 | 0.0029 |
| 185 | 944/0.50 | 2 | 20.6 | 25.8 | 0.106 | 0.0029 |
| 240 | 1225/0.50 | 2.2 | 23.5 | 29.4 | 0.0801 | 0.0028 |
