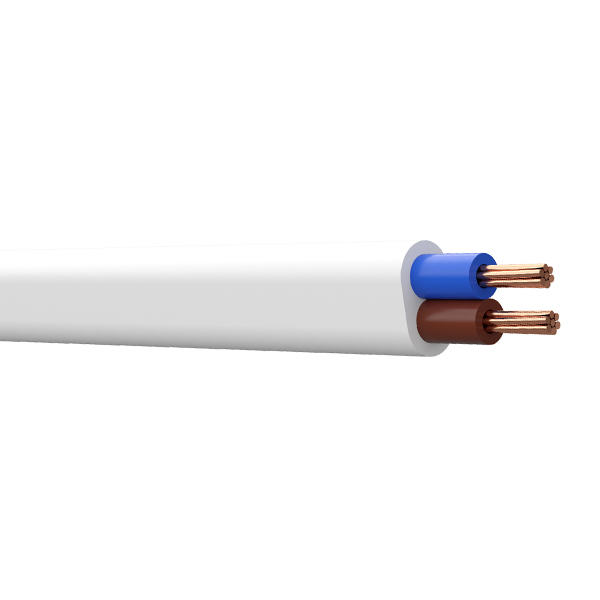

H05VVH2-F

2 core twin cable Electrical wire flexible conductor

Application

In domestic premises, kitchens, offices; for household appliances, including in damp premises; for medium duties (eg. washing machines, spin dryers, and refrigerators).

Share This Page

ABC Cable / Aerial Bundled Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation / Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

DIN VDE 0281-5, BS 6500, HD 21.5, EN 50525-2-11, NFC 32-201-5

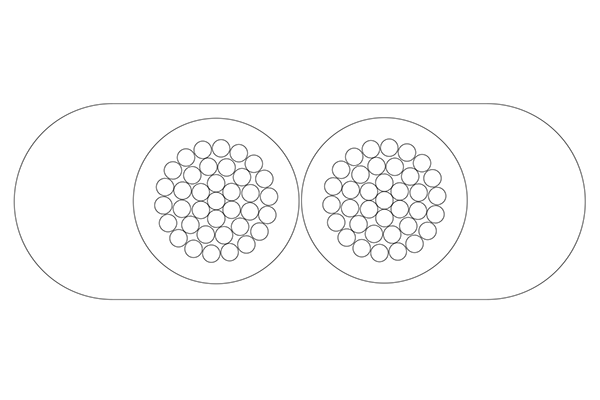

Construction

Conductor: Annealed copper, class 5 flexible conductor acc. to EN 60228

Insulation: PVC 70℃ type TI2

Sheath： PVC 70℃ type TM2

Characteristics

Rated voltages U0/U: 300/500V.
Note
U0: Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U: Rated power-frequency voltage between phase conductors for which the cable is suitable.
Maximum conductor operating temperature: +70℃
Maximum short circuit conductor temperature: +160℃
Test voltage: 2000V

Specifications

No. of cores x Nom. Cross section mm2	No. And dia. of strands No./mm	Mean overall diameter		Max. DC resistance of conductor at 20℃ Ω/km	Min. insulation resistance at 70℃ MΩ.km
No. of cores x Nom. Cross section mm2	No. And dia. of strands No./mm	Lower limit mm	Upper limit mm	Max. DC resistance of conductor at 20℃ Ω/km	Min. insulation resistance at 70℃ MΩ.km
H05VVH2-F
2×0.75	24/0.2	3.7×6.0	4.5×7.2	26	0.011
2×1.0	32/0.2	3.9×6.2	4.7×7.5	19.5	0.01
2×1.5	30/0.25	4.2×7.0	5.2×8.6	13.3	0.01
