H05VV-F
Heat resistant Annealed copper cable flexible cable H05VV-F
Application
In domestic premises, kitchens, offices; for household appliances, including in damp premises; for medium duties (eg. washing machines, spin dryers, and refrigerators).
Share This Page
Standards
DIN VDE 0281-5, BS 6500, BS7919, HD 21.5, NF C 32-201-5 , EN 50525-2-11

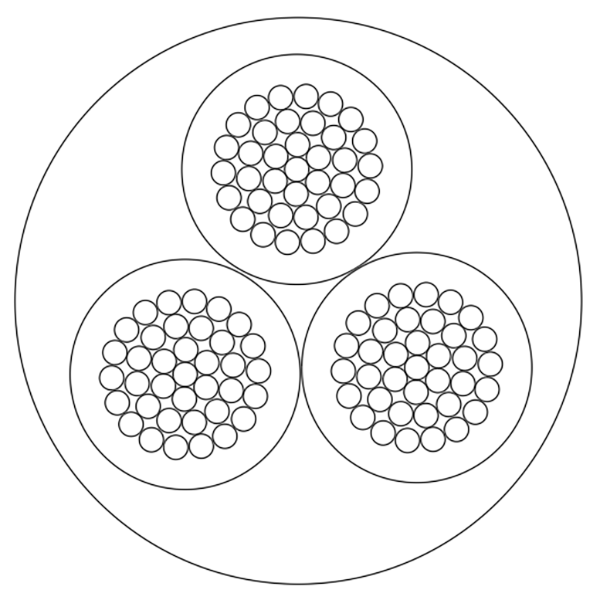

Construction
Conductor: Annealed copper, class 5 flexible conductor acc. to EN 60228
Insulation: heat resistant PVC type TI2
Sheath：heat resistant PVC type TM2
Color of insulation:
2-core: blue, brown
3-core: green-yellow, blue, brown
4-core: green-yellow, brown, black, grey
5-core: green-yellow, blue, brown, black, grey
Color of sheath：
white, black, grey or as customer required
Characteristics
- Rated voltages U0/U: 300/500V.
Note:
U0: Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U: Rated power-frequency voltage between phase conductors for which the cable is suitable. - Maximum conductor operating temperature: +70℃
- Maximum short circuit conductor temperature: +160℃
- Test voltage: 2000V
Specifications
| No. of cores ×Nom. Cross section mm2 |
No. and dia. of strands No./mm |
Mean overall diameter | Max. DC resistance of conductor at 20℃ Ω/km |
Min. insulation resistance at 90℃ MΩ.km |
|
| Lower limit mm |
Upper limit mm |
||||
| 2×0.75 | 24/0.2 | 5.7 | 7.2 | 26 | 0.011 |
| 2×1.0 | 32/0.2 | 5.9 | 7.5 | 19.5 | 0.01 |
| 2×1.5 | 30/0.25 | 6.8 | 8.6 | 13.3 | 0.01 |
| 2×2.5 | 50/0.25 | 8.4 | 10.6 | 7.98 | 0.0095 |
| 2×4 | 56/0.30 | 9.7 | 12.1 | 4.95 | 0.0078 |
| 3×0.75 | 24/0.2 | 6 | 7.6 | 26 | 0.011 |
| 3×1.0 | 32/0.2 | 6.3 | 8 | 19.5 | 0.01 |
| 3×1.5 | 30/0.25 | 7.4 | 9.4 | 13.3 | 0.01 |
| 3×2.5 | 50/0.25 | 9.2 | 11.4 | 7.98 | 0.0095 |
| 3×4 | 56/0.30 | 10.5 | 13.1 | 4.95 | 0.0078 |
| 4×0.75 | 24/0.2 | 6.6 | 8.3 | 26 | 0.011 |
| 4×1.0 | 32/0.2 | 7.1 | 9 | 19.5 | 0.01 |
| 4×1.5 | 30/0.25 | 8.4 | 10.5 | 13.3 | 0.01 |
| 4×2.5 | 50/0.25 | 10.1 | 12.5 | 7.98 | 0.0095 |
| 4×4 | 56/0.30 | 11.5 | 14.3 | 4.95 | 0.0078 |
| 5×0.75 | 24/0.2 | 7.4 | 9.3 | 26 | 0.011 |
| 5×1.0 | 32/0.2 | 7.8 | 9.8 | 19.5 | 0.01 |
| 5×1.5 | 30/0.25 | 9.3 | 11.6 | 13.3 | 0.01 |
| 5×2.5 | 50/0.25 | 11.2 | 13.9 | 7.98 | 0.0095 |
| 5×4 | 56/0.30 | 13 | 16.1 | 4.95 | 0.0078 |
