Conducting The Energy - Xinfeng Cable

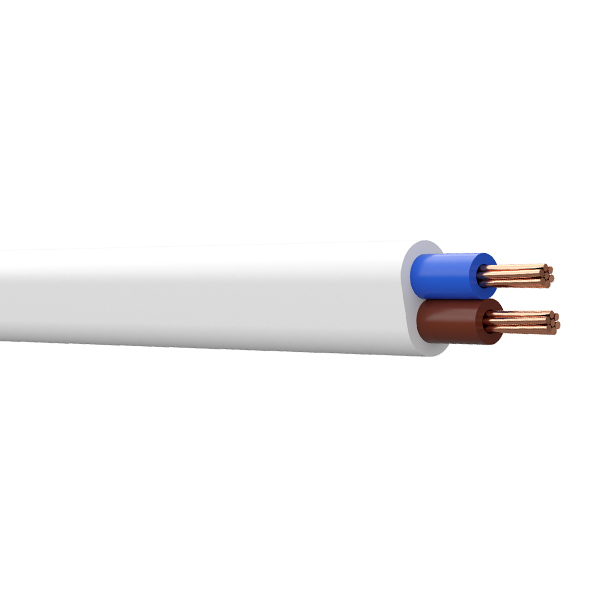

H05V2V2H2-F 2 core copper twin Cable
In domestic premises, kitchens, offices; for household appliances, including in damp premises; for medium duties (eg. washing machines, spin dryers, and refrigerators).
DIN VDE 0281-5, BS 6500, HD 21.5, EN 50525-2-11, NF C 32-201-5
Conductor: Annealed copper, class 5 flexible conductor acc. to EN 60228
Insulation: heat resistant PVC 90℃ type TI3
Sheath:heat resistant PVC 90℃ type TM3
No. of cores x Nom. Cross section mm2 |
No. And dia. of strands No./mm |
Mean overall diameter | Max. DC resistance of conductor at 20℃ Ω/km |
Min. insulation resistance at 70℃ MΩ.km |
|
Lower limit mm |
Upper limit mm |
||||
H05V2V2H2-F | |||||
2×0.75 | 24/0.2 | 3.7×6.0 | 4.5×7.2 | 26 | 0.011 |
2×1.0 | 32/0.2 | 3.9×6.2 | 4.7×7.5 | 19.5 | 0.01 |
2×1.5 | 30/0.25 | 4.2×7.0 | 5.2×8.6 | 13.3 | 0.01 |
If you have any interested in our cable product, welcome to get in touch with us!
