H05RR-F/ H05RN-F

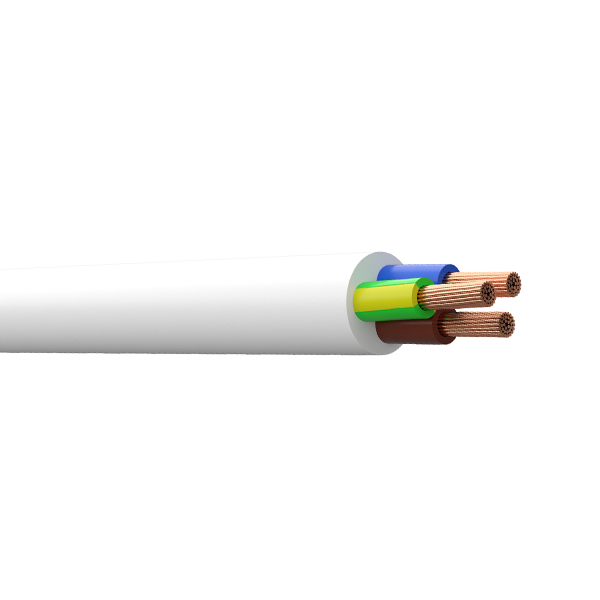

Flexible copper wire cable Sheathed cable H05RR-F / H05RN-F

Application

These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audiovisual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.

Share This Page

Aerial Cable /Service Drop Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation/ Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

IEC 60245, BS EN 50525-2-21, GB/T5013.4 etc.

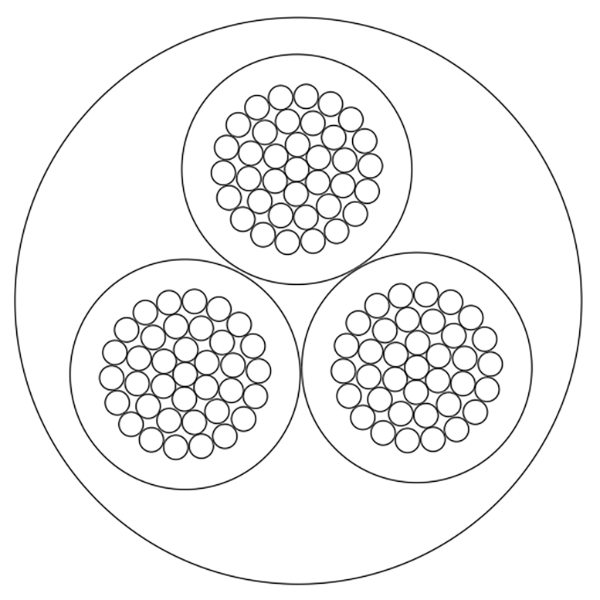

Construction

Conductor: Plain annealed flexible copper wire or tinned annealed flexible copper wire (Class 5)

Insulation: EPR (Ethylene Propylene Rubber) or other equivalent synthetic elastomer

Sheath: Polychloroprene compound (PCP) or other equivalent synthetic elastomer

Characteristics

Voltage Rated U0/ U: 300/500V.
Note:
U0: Rated power-frequency voltage between conductor and earth for which the cable is suitable.
U: Rated power-frequency voltage between phase conductors for which the cable is suitable.
Temperature Rating : Fixed : -30℃ to 60℃ ; Fixed protected installations : +85℃ .
Minimum Bending Radius: Fixed: 4 x overall diameter; Flexed: 6 x overall diameter.

Specifications

Core and size mm2	Stranding number of strand/strand diameter No./mm	Thickness of insulation mm	Thickness of sheath mm	Nominal overall diameter mm	Approx. weight kg/km
2 x 0.75	24 x 0.20	0.6	0.8	6.4	53
2 x 1.0	32 x 0.20	0.6	0.9	6.6	60
2 x 1.5	30 x 0.25	0.8	1	7.6	82
2 x 2.5	50 x 0.25	0.9	1.1	9.2	135
2 x 1.0	56 x 0.30	1	1.2	10.8	191
2 x 6	84 x 0.30	1	1.5	13.4	274
3X1.0	7/0.40	0.6	0.9	8.4	95
3X1.5	7/0.50	0.6	0.9	9.3	130
3X2.5	7/0.67	0.9	1.1	10.4	175
3X4.0	7/0.85	1	1.2	12.7	270
3X6	7/1.04	1	1.2	13.9	355
3X10	7/1.35	1.2	1.4	17.2	570
3X16	7/1.70	1.2	1.4	19.5	790
3X25	19/1.35	1.4	1.6	24.4	1290
3X35	19/1.53	1.4	1.7	26.5	1590
3X50	19/1.78	1.6	1.8	30.3	2150
3X70	19/2.14	1.6	2	34.7	2920
3X95	37/1.78	1.8	2.2	39.7	3790
3X120	37/2.03	1.8	2.3	43.8	4790
3X150	37/2.25	2	2.5	48.4	5860
3X185	37/2.52	2.2	2.7	53.9	7290
3X240	61/2.25	2.4	3	61.1	9500
3X300	61/2.52	2.6	3.2	67.6	11960
4 x 0.75	24 x 0.20	0.6	0.9	7.8	84
4 x 1.0	32 x 0.20	0.6	0.9	8	95
4 x 1.5	30 x 0.25	0.8	1.1	8.8	122
4 x 2.5	50 x 0.25	0.9	1.2	10.6	189
4 x 4.0	56 x 0.30	1	1.3	13.1	295
4 x 6.0	84 x 0.30	1	1.5	16.3	442
4 x 10	80 x 0.40	1.2	1.8	20	707
4 x 16	128 x 0.40	1.2	2	24.3	987
5 x 0.75	24 x 0.20	0.6	1	8.5	101
5 x 1.0	32 x 0.20	0.6	1	8.8	116
5 x 1.5	30 x 0.25	0.8	1.1	9.6	148
5 x 2.5	50 x 0.25	0.9	1.3	11.6	229
5 x 4.0	56 x 0.30	1	1.4	14.4	359
5 x 6.0	84 x 0.30	0.8	1.8	17.7	535
