H03VVH2-F

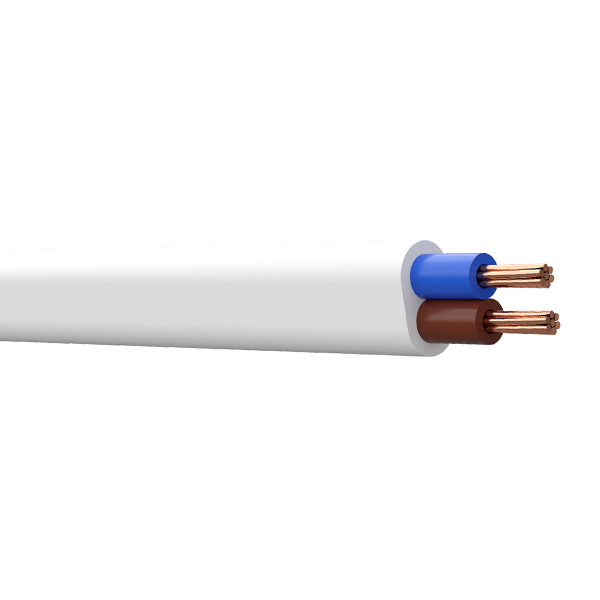

Flat cable CU/PVC/PVC Cable H03VVH2-F

Application

In domestic premises, kitchens, offices; for household appliances, including in damp premises; for medium duties (eg. washing machines, spin dryers, and refrigerators).

Share This Page

Standards

DIN VDE 0281-5, BS 6500, HD 21.5, EN 50525-2-11, NF C 32-201-5

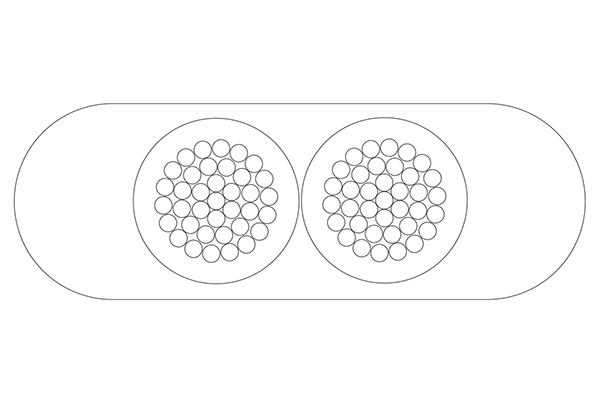

Flat cable CU PVC PVC Cable H03VVH2-F STRUCTURE

Construction

Conductor: Annealed copper, class 5 flexible conductor acc. to EN 60228

Insulation: PVC 70℃ type TI2

Sheath: PVC 70℃ type TM2

Characteristics

  • Rated voltages U0/U: 300/300V.
    Note:
    U0: Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
    U: Rated power-frequency voltage between phase conductors for which the cable is suitable.
  • Maximum conductor operating temperature: +70℃
  • Maximum short circuit conductor temperature: +160℃
  • Test voltage: 2000V

Specifications

No. of cores x Nom.
Cross section
mm2
No. And dia. of
strands
No./mm
Mean overall diameter Max. DC resistance of conductor at 20℃
Ω/km
Min. insulation resistance at 70℃
MΩ.km
Lower limit
mm
Upper limit
mm
H03VVH2-F
2×0.5 16/0.20 3.0×4.9 3.7×5.9 39 0.011
2×0.75 24/0.20 3.2×5.2 3.8×6.3 26 0.01
