12.7/22(24)kV Al/XLPE/CWS/HDPE Aerial Cable

22KV AS/NZS standard aerial cable

Applications

These cables are suitable for MV power applications, particularly for connections in transformer stations and power stations, between aerial lines and transformer stations.

Share This Page

Standards

IEC 60502

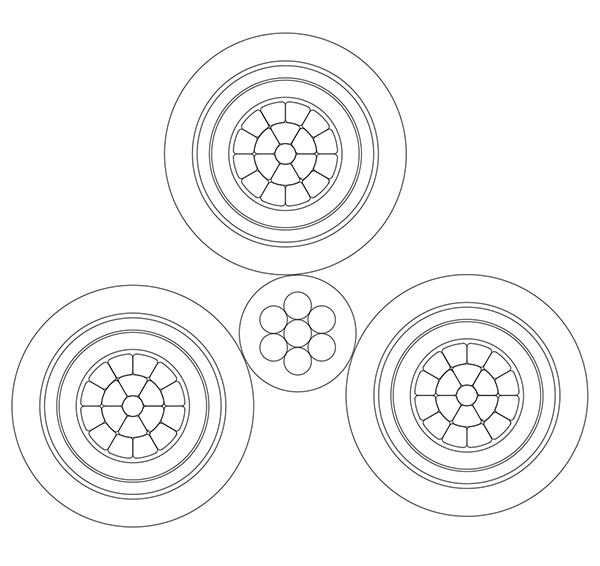

22KV xlpe insulation abc cable structure

Construction

1: Phase conductor: Circular compacted stranded aluminum

2: Conductor screen layer: Extruded semi-conductive compound.

3: Insulation: XLPE

4: Insulation screen layer: Extruded semi-conductive compound.

5: Separator layer: non-hygroscopic tape.

6: Outer sheath (optional): PE/XLPE/PVC, UV-resistant.

7: Support conductor: Stranded galvanized steel wires or aluminum alloy wires
Core identification (optional): Colors tape or numbers.
Assembly: Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.
Note: Support conductor could be with or without insulation

Characteristics

  • Voltage Rating: 6kV-46kV
  • Operating Temperature:
    PVC : -15°C to +70°C PE: -40°C to +70°C XLPE : -40°C to +90°C
  • Minimum Laying/ Installation Temperature:
    PVC : 0°C PE: -20°C XLPE : -20°C
    Note: The above temperature rating provisions can be changed as order.
  • Minimum Bending Radius: 12 x OD (Overall Diameter)

Specifications

Number of Cores    x Nominal Cross Section
No.×mm²
Phase Conductor Messenger Conductor(Bare) Approx. weight
kg/km
Nominal Diameter of Conductor
mm
Nom.  Thickness of insulation
mm
Maximum Conductor Resistance at 20°C
Ω/kM
Stranding
No.×mm
Light duty screen
3×35 6.9 5.5 0.868 7/2.00 2340
3×50 8.1 5.5 0.641 19/2.00 2780
3×70 9.8 5.5 0.443 19/2.00 3100
3×95 11.4 5.5 0.32 19/2.00 3510
3×120 12.8 5.5 0.253 19/2.00 3850
3×150 14.4 5.5 0.206 19/2.00 4240
3×185 16 5.5 0.164 19/2.00 4710
Heavy duty screen
3×35 6.9 5.5 0.868 7/2.00 2600
3×50 8.1 5.5 0.641 19/2.00 3350
3×70 9.8 5.5 0.443 19/2.00 4030
3×95 11.4 5.5 0.32 19/2.00 4680
3×120 12.8 5.5 0.253 19/2.00 5020
3×150 14.4 5.5 0.206 19/2.00 5410
3×185 16 5.5 0.164 19/2.00 5880
